10 Main Applications of Al2O3 Aluminum Substrate

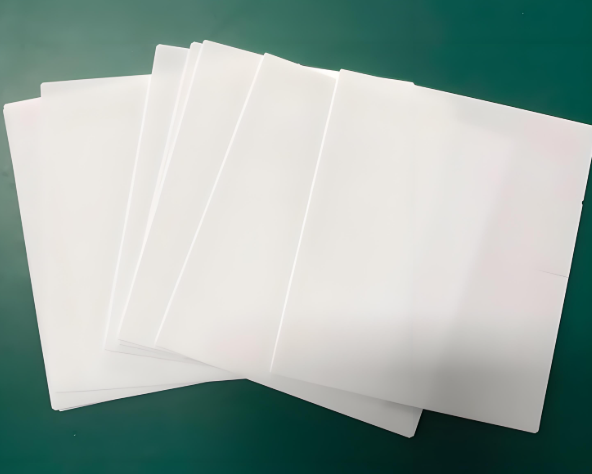

Aluminum substrates are widely used in electronics thanks to their excellent thermal performance and mechanical strength. Among them, Al₂O₃ aluminum substrate—made from aluminum oxide ceramic—stands out for its reliability in demanding environments. Its balance of thermal conductivity, electrical insulation, and affordability makes it a trusted choice across many industries.

In this blog, we’ll share 10 major applications of Al₂O₃ aluminum substrate, showcasing why it has become an essential material for today’s high-performance electronics.

1. LED Lighting Systems

Al₂O₃ aluminum substrates are heavily used in LED packages. They efficiently dissipate heat generated by high-lumen LEDs, which helps extend lifespan and improve luminous efficiency. From indoor bulbs to outdoor floodlights, these substrates keep LEDs cool and reliable.

2. Automotive Electronics

Modern vehicles contain advanced electronics—ECUs, lighting, sensors, and power modules. The Al₂O₃ aluminum substrate provides both electrical insulation and thermal conduction, supporting components in harsh automotive environments where vibrations, high temperatures, and compact spaces are the norm.

3. Power Electronics and IGBT Modules

Power modules such as IGBTs generate substantial heat. The aluminum substrate with Al₂O₃ ceramic ensures heat is transferred away from the device quickly. Its strength and thermal stability make it suitable for inverters, converters, and power distribution units used in renewable energy and electric vehicles.

4. Telecommunication Equipment

Base stations and telecom infrastructure operate continuously. Circuit boards in this equipment often rely on Al₂O₃ aluminum substrates to maintain stable performance under thermal load. Their dielectric strength and consistent behavior over time make them ideal for RF and microwave communication boards.

5. Medical Devices

In medical diagnostics and imaging equipment like CT scanners and ultrasound systems, signal integrity and heat control are critical. Al₂O₃ substrates help ensure device safety and reliability by managing thermal buildup without introducing electrical interference.

6. Aerospace and Military Electronics

Aerospace systems demand lightweight and rugged materials. The aluminum substrate using Al₂O₃ ceramic fits perfectly thanks to its mechanical durability, chemical resistance, and high insulation. It’s often used in radar systems, satellite modules, and avionics.

7. Battery Management Systems (BMS)

In energy storage and EV applications, battery packs generate heat during operation and charging. Al₂O₃ aluminum substrates help in creating reliable BMS circuits that balance and monitor battery cells while ensuring thermal stability and safety.

8. Consumer Electronics

High-performance consumer devices—like smartphones, gaming consoles, and laptops—demand compact, heat-efficient PCBs. Al₂O₃ aluminum substrates keep internal temperatures within safe limits, improving device longevity and user experience.

9. Laser Drivers and Optical Modules

Devices that use laser or optical transmission need excellent heat dissipation and electrical insulation. Al₂O₃ substrates offer low dielectric loss and reliable thermal paths, making them suitable for laser diode drivers, optical transceivers, and sensor circuits.

10. High-Frequency Circuits

At high frequencies, PCB materials must maintain signal integrity while controlling heat. Al₂O₃ aluminum substrates are ideal for RF amplifiers, filters, and antennas. They provide a stable dielectric constant, helping reduce signal loss and EMI issues.

Why Choose Best Technology?

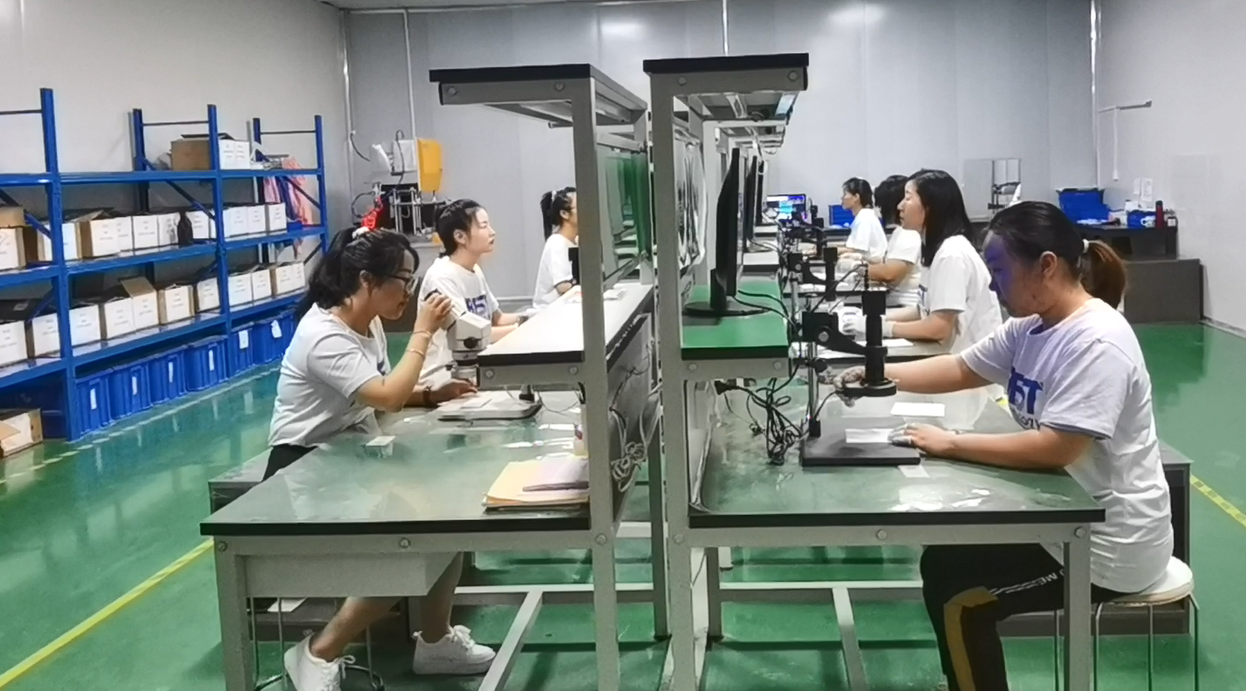

As a professional ceramic PCB board manufacturer, we are equipped to meet all your diverse application needs. Our skilled engineering, production, and quality control teams understand the unique requirements of demanding sectors such as medical, automotive, aerospace, and LED lighting. We are familiar with the strict acceptance standards in these fields and manufacture each ceramic board with precision and care.

If you have questions about our products or services—including pricing, minimum order quantities, delivery time, certifications, engineering support, or quality standards—please feel free to reach out at any time. We’re committed to being the best ceramic PCB manufacturer in China, delivering exceptional quality, competitive pricing, and reliable service to meet your specialized project demands.

FAQs

1. What makes Al₂O₃ aluminum substrate different from standard aluminum PCBs?

Al₂O₃ provides better electrical insulation, higher thermal resistance, and more stability compared to standard polymer-dielectric aluminum PCBs.

2. Can Al₂O₃ aluminum substrates handle high power?

Yes. Their excellent thermal conductivity makes them suitable for power electronics, especially IGBT and MOSFET circuits.

3. Is Al₂O₃ suitable for multilayer PCBs?

While Al₂O₃ is more commonly used in single or double-layer designs, it can also support multilayer construction with advanced fabrication techniques.

4. How do Al₂O₃ substrates perform in harsh environments?

They are highly resistant to temperature fluctuations, moisture, and chemicals—ideal for aerospace, military, and automotive use.

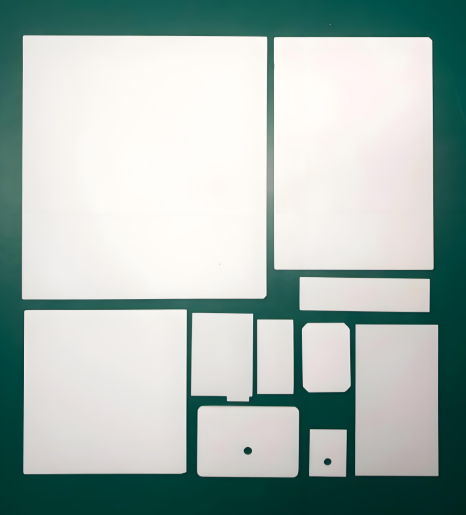

5. What thicknesses are available for Al₂O₃ substrates?

Typical thicknesses range from 0.25mm to 1.0mm, but custom sizes can be made depending on the application.
