Recent Advances in Active Metal Brazing of Ceramics and Process

In industries like aerospace, power electronics, and medical devices, joining ceramics to metals is a critical process. Traditional brazing methods struggle with this task, but active metal brazing offers a solution by introducing reactive elements that form a strong bond with ceramics. In this blog, we explore how this method works and the recent technological advancements making it even more reliable and efficient.

What Is Active Metal Brazing?

Active metal brazing is a method for joining ceramic materials (such as alumina, silicon nitride, or aluminum nitride) directly to metals without requiring surface metallization. The key lies in using active elements—like titanium (Ti), zirconium (Zr), or hafnium (Hf)—in the filler alloy. These elements chemically react with the ceramic surface to form strong interfacial compounds.

This process supports high-strength, hermetic bonds that are capable of withstanding thermal cycling, vibration, and mechanical stress. It’s commonly used in electronic packaging, sensor enclosures, high-voltage devices, and components operating in harsh environments.

How the Active Metal Brazing Process Works?

1. Ceramic and Metal Preparation

Both ceramic and metal parts must be cleaned thoroughly. Any contaminants, moisture, or surface defects can reduce bond strength. Ceramics are often pre-heated or plasma-cleaned to remove adsorbed gases and improve wetting.

2. Filler Metal Selection

The filler alloy typically consists of:

• Ag-Cu-Ti for alumina and zirconia
• Cu-Sn-Ti or Cu-Ni-Ti for aluminum nitride and silicon nitride
• Au-based or Ni-based alloys for special applications like optics or vacuum components

3. Controlled Atmosphere

Brazing is conducted in a vacuum furnace or under inert gas (argon or nitrogen) to prevent oxidation of the active elements. Oxygen can severely degrade the performance of the filler metal.

4. Heating Cycle

A standard thermal cycle involves:

• Ramp-up to 850°C–1000°C
• Holding at peak temperature for a few minutes
• Controlled cooling to reduce thermal stress

5. Formation of Reaction Layer

The active element reacts with the ceramic to form a thin reaction layer—such as TiO₂ on alumina or TiN on silicon nitride. This chemically bonds the ceramic to the metal through a strong interfacial compound.

Recent Advances in Active Metal Brazing

1. Nano-Engineered Interlayers

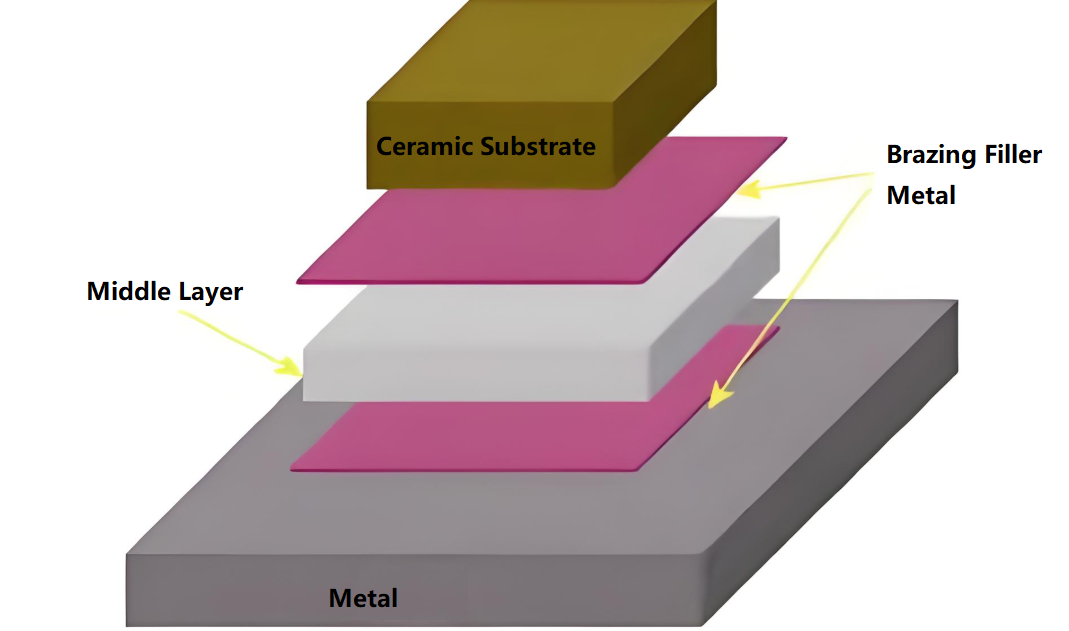

Nanostructured coatings like TiN, SiC, or graphene are being applied to ceramic surfaces to improve wetting and reduce residual stress. These interlayers absorb thermal mismatch energy and improve bond durability.

2. Low-Temperature Brazing Alloys

New filler compositions, like Ag-Cu-Ti-In, reduce brazing temperatures to below 800°C, helping protect embedded electronics and reduce thermal distortion.

3. Reactive Multilayer Foils (RMLFs)

These stacked nanolayers (e.g., Ni/Al, Ti/Al) react exothermically to deliver localized heat during bonding—ideal for microelectronics and precision assemblies.

4. Laser-Assisted Brazing

Localized heating using fiber or diode lasers offers tighter control, less energy consumption, and minimal distortion, making this suitable for fine-feature assemblies.

5. Functionally Graded Materials (FGMs)

Gradual transition from ceramic to metal at the bonding interface minimizes stress concentration and improves mechanical performance.

6. AI-Driven Filler Design

Machine learning is now being used to predict wetting, stress, and compound formation, accelerating alloy development and improving joint reliability.

Common Brazing Filler Systems and Their Use Cases

Industrial Applications of Active Brazing

• Power Electronics

Used to bond AlN or Si₃N₄ substrates to metal baseplates in IGBT and inverter modules, ensuring strong thermal and electrical performance.

• Aerospace & Defense

Used in radomes, sensors, and casings exposed to high temperatures and mechanical stress.

• Medical Devices

For hermetically sealed ceramic feedthroughs and bio-inert implants requiring durable and leak-proof metal-to-ceramic joints.

• Automotive Sensors

Reliable bonding of ceramics to metal connectors in environments exposed to vibration, chemicals, and heat.

• Energy and Nuclear

Used in fuel cells, thermoelectric generators, and reactor parts for their ability to survive extreme thermal and radiation exposure.

Challenges in Active Metal Brazing

Residual Stress

CTE mismatch between ceramics and metals can crack joints. Controlled cooling, interlayers, and compliant metals help manage this issue.

Interfacial Brittleness

Overgrowth of reaction layers weakens the bond. Time and temperature must be closely monitored to control thickness.

Poor Wetting of Some Ceramics

SiC and AlN are difficult to wet. Pre-oxidation, rare-earth additives, and plasma activation help improve results.

Alloy Cost

Silver and indium are expensive. Research into Cu-based alloys continues to find cost-effective alternatives.

Environmental & Safety Considerations

• Lead-free alloys are preferred to comply with RoHS and REACH.
• Fluxless brazing minimizes chemical waste.
• Inert atmospheres ensure clean joints and fewer rejects.

Frequently Asked Questions (FAQs)

Q1: What ceramics can be brazed using active metal brazing?

Oxide ceramics like alumina and zirconia, and non-oxides like AlN and Si₃N₄, with the correct filler alloy.

Q2: Why is a vacuum or inert atmosphere needed?

To protect reactive elements like titanium from forming oxides before reacting with the ceramic.

Q3: What’s the benefit of laser-assisted brazing?

Laser brazing offers precision, faster processing, and lower heat input—ideal for small or delicate parts.

Q4: Can I join ceramics to stainless steel using this method?

Yes. Alloys like Cu-Sn-Ti and Ag-Cu-Ti can effectively join ceramics to stainless steel.

Q5: What is the biggest challenge in active brazing today?

Controlling residual stress and avoiding brittle interfacial layers are the most significant challenges in current applications.
